DPR Label Counter CE111

Overview

The CE111 is designed for operations that need more than simple rewinding. Many businesses do not just print or apply labels; they also need to verify quantities, prepare rolls for different stations, change core sizes, and break down large production rolls into smaller counted runs. In those environments, a dedicated electronic label counter can save time, reduce handling errors, and create more repeatable downstream workflows.

This machine combines the functions of label counting, rewinding, and unwinding into one practical finishing unit. That is especially useful in packaging departments, contract converting workflows, manufacturing support areas, fulfillment environments, and relabeling operations where labels may need to be redistributed into smaller roll quantities for later use.

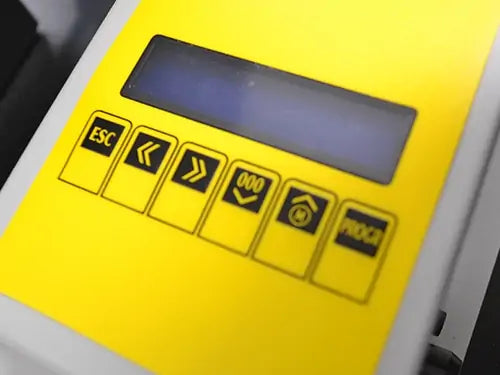

One of the CE111’s most practical features is its ability to stop at a preset number of labels. Once the programmed count is reached, the machine stops and provides an acoustic signal. This makes it easier to create smaller rolls with a defined quantity, which can be valuable for multi-shift production lines, kitting operations, contract packaging, repeat work orders, or inventory control where consistent roll counts matter.

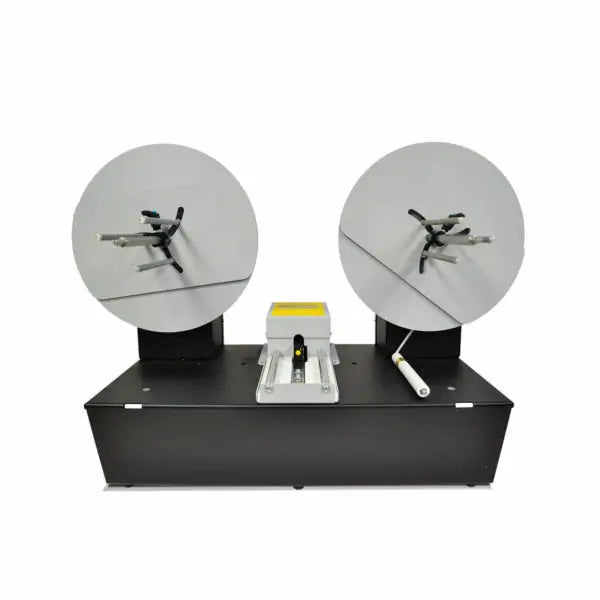

Because both turrets are motorized, the CE111 supports active roll handling on both the unwinding and rewinding sides. The rewinder rotation speed is adjustable, while the unwinder uses automatic self-adjustment. That workflow logic helps maintain more controlled roll transfer during counting and rewinding without requiring constant manual intervention.

With support for rolls up to 10" outer diameter, labels up to 5.9" wide, and adjustable core holders from 1.57" to 4.64" on both sides, the CE111 fits a broad range of commercial roll label handling tasks. It is a strong fit for operations that want to improve consistency, reduce manual counting, and prepare label stock more efficiently for storage, application, shipping, or internal use.

Common applications

• Counting labels on a completed production roll
• Rewinding labels onto different core sizes
• Unwinding and rewinding on one machine
• Breaking a large roll into smaller counted rolls
• Preparing label rolls for separate workstations or shifts
• Contract packaging and private-label production support
• Warehouse relabeling and inventory roll preparation
• Manufacturing environments with repeat quantity requirements
• Packaging departments that need preset label roll counts
• Kitting, assembly, and line-side label distribution

Workflow overview

The CE111 fits best where label rolls need to be managed after printing or before application. Instead of treating every roll as a fixed finished unit, this machine gives operators the ability to reshape roll inventory around the real workflow. That might mean transferring labels to a different core size, creating a smaller roll for a short run, or counting out a set quantity for a defined work order.

This matters in practical business environments. A packaging team might need a smaller counted roll for a bench-top applicator. A warehouse might need a fixed quantity of identification labels for a relabeling project. A contract packer may want multiple equal rolls from a larger master roll. An operations team may simply want to verify the count on a roll before it moves into production.

Because the CE111 combines counting, rewinding, and unwinding functions, it helps reduce the need for separate handling steps. That can improve organization and reduce manual counting errors in environments where label quantities and roll structure matter as much as the printed content itself.

Why preset counting matters in real label workflows

Manual roll counting can be slow, inconsistent, and difficult to repeat accurately across shifts or operators. A preset counter changes that by giving teams a defined stop point. Once the target quantity is reached, the CE111 stops and sounds an acoustic alert. That helps create more predictable roll quantities without requiring constant visual monitoring or manual tallying.

This is especially helpful when labels need to be issued in controlled amounts. Examples include preparing job-specific rolls, allocating labels to multiple operators, setting quantities for production runs, or preparing smaller saleable or internal-use rolls from a larger source roll.

Why width, diameter, and core range matter

Roll-handling equipment succeeds or fails on physical fit. The 5.9" maximum label width determines whether your media can be processed comfortably. The 10" maximum roll diameter affects how large a roll can be loaded or produced. The 1.57" to 4.64" core holder range on both sides gives the CE111 flexibility for changing roll builds and transferring labels between different core formats.

For buyers comparing finishing equipment, those three factors are often more important than general marketing language because they determine whether the machine can actually support the way your label media is stored, transported, counted, and prepared for downstream use.

How the dual-motor setup supports smoother handling

The CE111 uses motorized turrets on both sides, which helps the machine manage roll transfer more actively than passive roll holders. The rewinder side allows speed adjustment, while the unwinder self-adjusts automatically. This supports a more controlled handoff from one side to the other as labels are counted and rewound.

In practical terms, that means operators can fine-tune the rewinding behavior while relying on the unwinder to respond automatically. For repeat-use stations, that can help reduce some of the inconsistency that comes from manually managing roll tension or trying to balance roll feed by hand.
