TSC TDP-225W Wristband Desktop Thermal Printer, 203 dpi, USB Host

TSC TDP-225W Wristband Desktop Thermal Printer, 203 dpi, USB Host

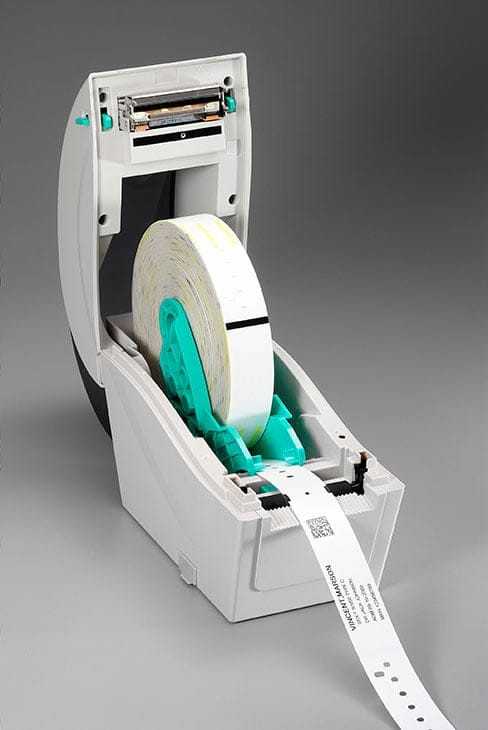

The TDP-225W is an innovative direct thermal desktop label printer designed specifically for wristband printing. This printer is more acutely suited to operate within healthcare, entertainment & hospitality, and some sectors of Government & Emergency. This label printer can print 2-inch wide wristband labels at an efficient and fast pace to help substantially reduce cost per wristband. The printer comes at a compact design and can be further mounted on walls to further save operating space. Additionally, it can hold up to a 6.5 inch O.D. roll of wristbands to operate with minimal changeovers and has a print speed of up to 5 inches per second and resolution of up to 203 dpi. This model has a USB host port for use with a keyboard or scanner.
Print Specifications

• Resolution: 203 dpi
• Max. Print Width: 2.05" (52mm)
• Max. Print Length: 90" (2,286 mm)
• Max. Print Speed: 5" (127mm) per second
• Printing Method: Direct Thermal

Media Capacity

• Media Width: 0.59" - 2.05" (15 - 52mm)
• Media Length: 0.39" - 90" (10 - 2,286mm)
• Roll Size: 6.5" (165.1mm)
• Core Diameter: 1" (25.4mm)

Interface

• USB 2.0, Ethernet, USB Host

Purchasing Options
Interface Add-ons

• TDP-225W Serial (RS-232) port, replaces Ethernet port

Extended Warranty

• TDP-225W 1 year priority depot (3 years total)
• TDP-225W 3 year priority depot (5 years total)



What industries use the TSC TDP-225W?
This printer is widely used in hospitals, clinics, amusement parks, concerts, and event venues for printing wristbands used in patient ID, guest tracking, and secure access.

Is the TSC TDP-225W compatible with wristbands from other brands?
Yes, the open media slot accommodates wristbands from major suppliers, making it easy to switch or integrate into existing operations.
