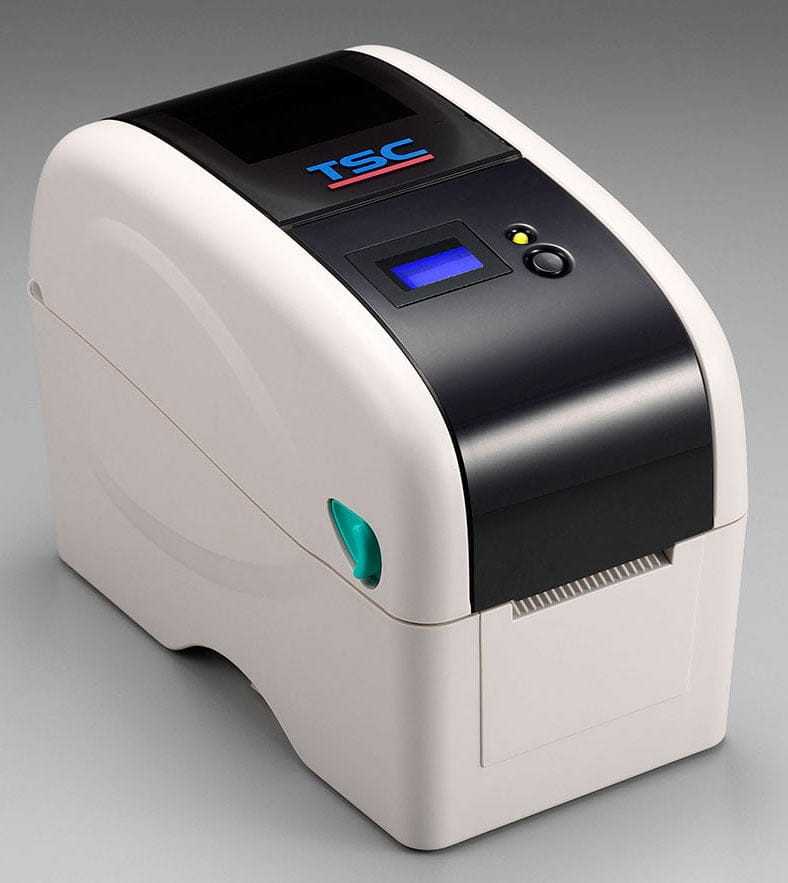

TSC TTP-225 Desktop Thermal Printer, 203 dpi, LCD Display, Ethernet

TSC TTP-225 Desktop Thermal Printer, 203 dpi, LCD Display, Ethernet

The TTP-225 with Ethernet interface and LCD display is an affordable thermal transfer desktop label printer that allows users to print 2 inch wide labels at a fast speed. The TTP-225 is able to print 2 inch media and at a speed of up to 5 inches per second, and at a resolution of 203 dpi. Its compact design is meant to save space and allow users to operate the label printer at any location with minimal setup. The printer does not have replaceable or losable parts that save costs in long-term operation.
Print Specifications

• Resolution: 203 dpi
• Max. Print Width: 2.13" (54.1mm)
• Max. Print Length: 90" (2,286 mm)
• Max. Print Speed: 5" (127mm) per second
• Printing Method: Thermal Transfer & Direct Thermal

Media Capacity

• Media Width: 0.59" - 2.36" (15 - 60mm)
• Media Length: 0.24" - 90" (6 - 2,286 mm)
• Roll Size: 5" (127mm)
• Core Diameter: 1" - 1.5" (25.4 - 38.1mm)

Ribbon Capacity

• Ribbon Width: 2.20" - 2.28" (56 - 58mm)
• Ribbon Length: Up to 90 meters long
• Roll Size: 1.4" (37mm)
• Core Diameter: 0.5" (12.7mm)

Interface

• USB 2.0, Ethernet

Purchasing Options
Interface Add-ons

• TTP-225 Ethernet interface board assembly

Extended Warranty

• TTP-225 1 year priority depot (3 years total)
• TTP-225 3 year priority depot (5 years total)



What is the TSC TTP-225 used for?
The TTP-225 is widely used in pharmacies, retail counters, clinics, and warehouses for barcode, product, and patient labeling.

Is the TTP-225 easy to use for office staff?
Yes, the LCD screen and compact design make it user-friendly for staff in healthcare, administration, and retail environments.

Does the TTP-225 support network printing?
Absolutely. With built-in Ethernet, it's ideal for shared use across workstations in small businesses.
