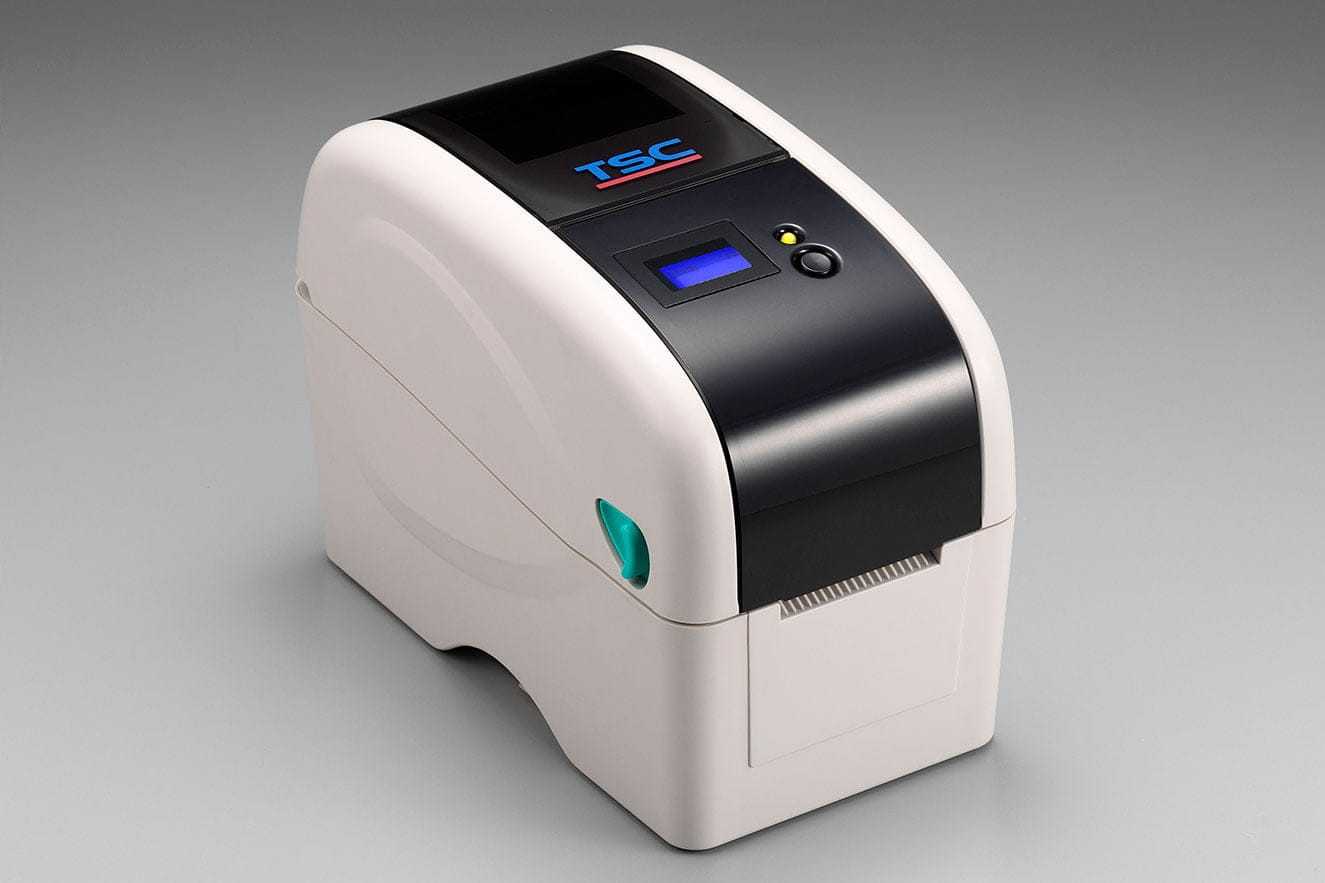

TSC TTP-323 Desktop Thermal Printer, 300 dpi, LCD Display, Ethernet

TSC TTP-323 Desktop Thermal Printer, 300 dpi, LCD Display, Ethernet

The TTP-323 with Ethernet interface and LCD display is an affordable thermal transfer desktop label printer that allows users to print 2 inch wide labels at a fast speed. The TTP-323 is able to print 2 inch media and at a speed of up to 3 inches per second, and at a resolution of 300 dpi. Its compact design is meant to save space and allow users to operate the label printer at any location with minimal setup. The printer does not have replaceable or losable parts that save costs in long-term operation.
Print Specifications

• Resolution: 300 dpi
• Max. Print Width: 2.13" (54.1mm)
• Max. Print Length: 40" (1,016 mm)
• Max. Print Speed: 3" (76.2mm) per second
• Printing Method: Thermal Transfer & Direct Thermal

Media Capacity

• Media Width: 0.59" - 2.36" (15 - 60mm)
• Media Length: 0.24" - 40" (6 - 1,016 mm)
• Roll Size: 5" (127mm)
• Core Diameter: 1" - 1.5" (25.4 - 38.1mm)

Ribbon Capacity

• Ribbon Width: 2.20" - 2.28" (56 - 58mm)
• Ribbon Length: Up to 90 meters long
• Roll Size: 1.4" (37mm)
• Core Diameter: 0.5" (12.7mm)

Interface

• USB 2.0, Ethernet

Purchasing Options
Interface Add-ons

• TTP-323 Ethernet interface board assembly

Extended Warranty

• TTP-323 1 year priority depot (3 years total)
• TTP-323 3 year priority depot (5 years total)

What is the TTP-323 used for?
In Canada, the TTP-323 is widely used in retail stores, healthcare clinics, and offices for printing barcode labels, price tags, prescription labels, and compliance stickers.

Is the TTP-323 easy to set up for small businesses?
Yes, the LCD screen and user-friendly controls make it easy to configure and manage, even for non-technical staff in busy environments.

Does the TTP-323 support remote printing in networked offices?
Absolutely. With Ethernet support, offices can connect the printer to their local networks for seamless, shared printing.
